Synthi A circuit scans


Oscillator 1

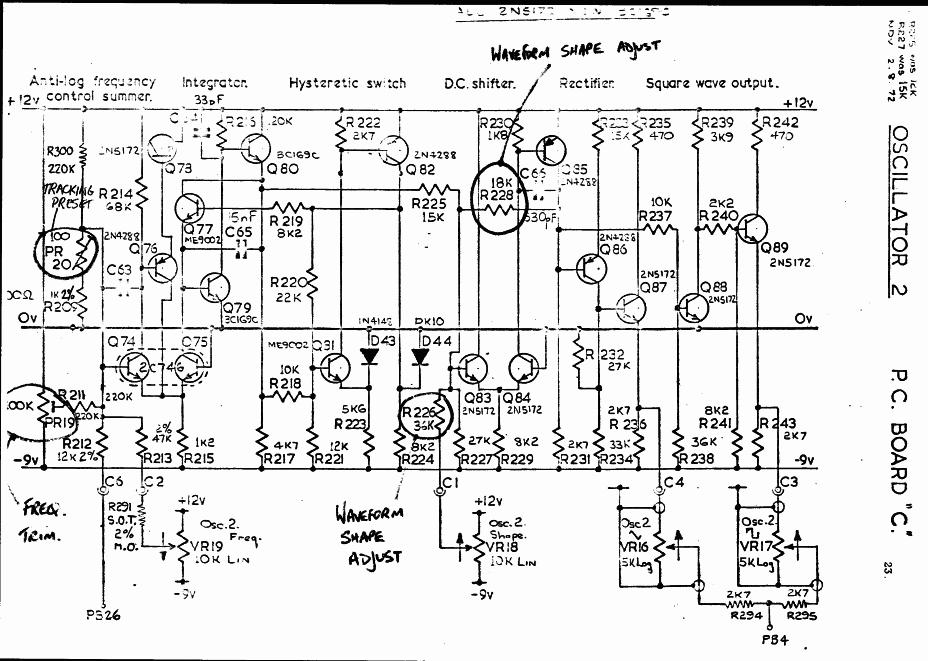

Oscillator 2



Oscillator 3



Envelope Shaper

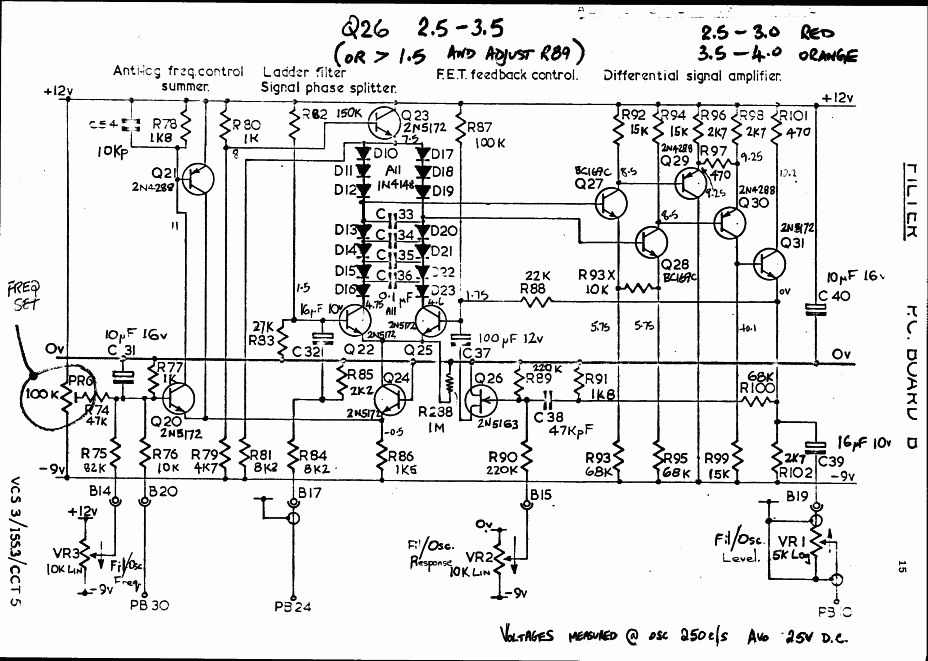

Filter

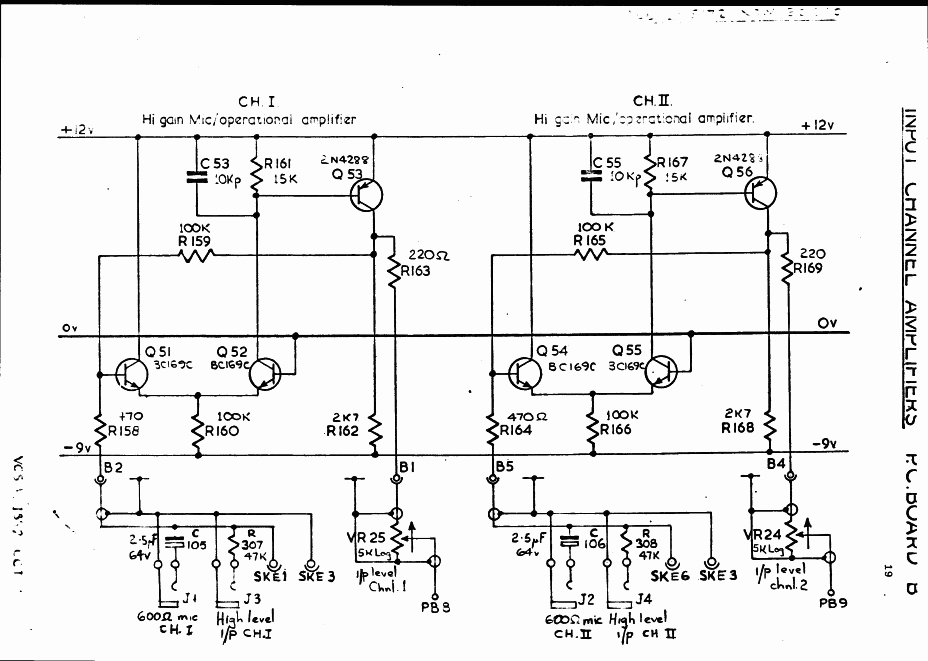

Input Channels

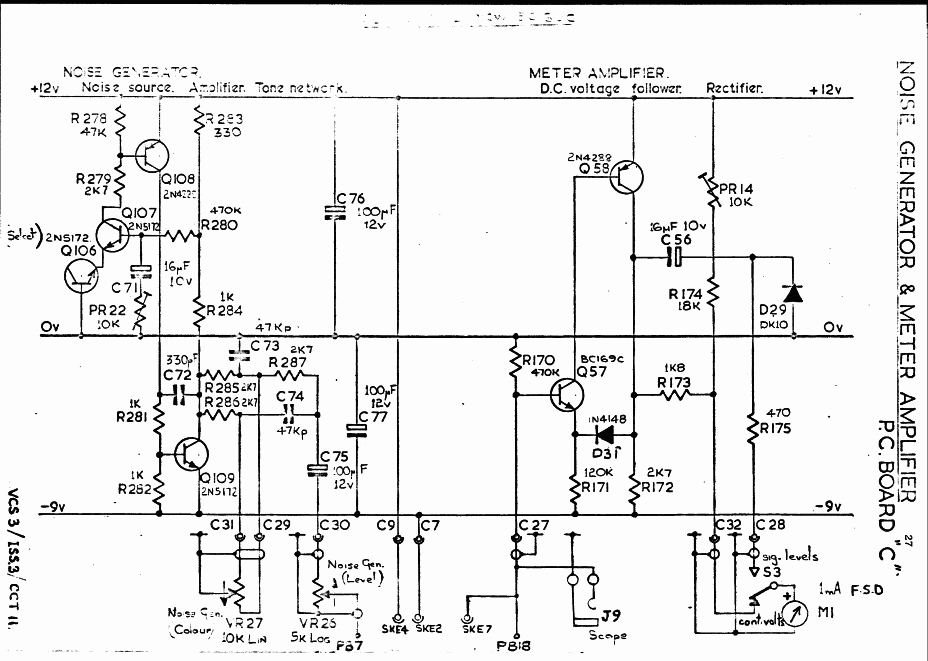

Noise Generator and Meter amp

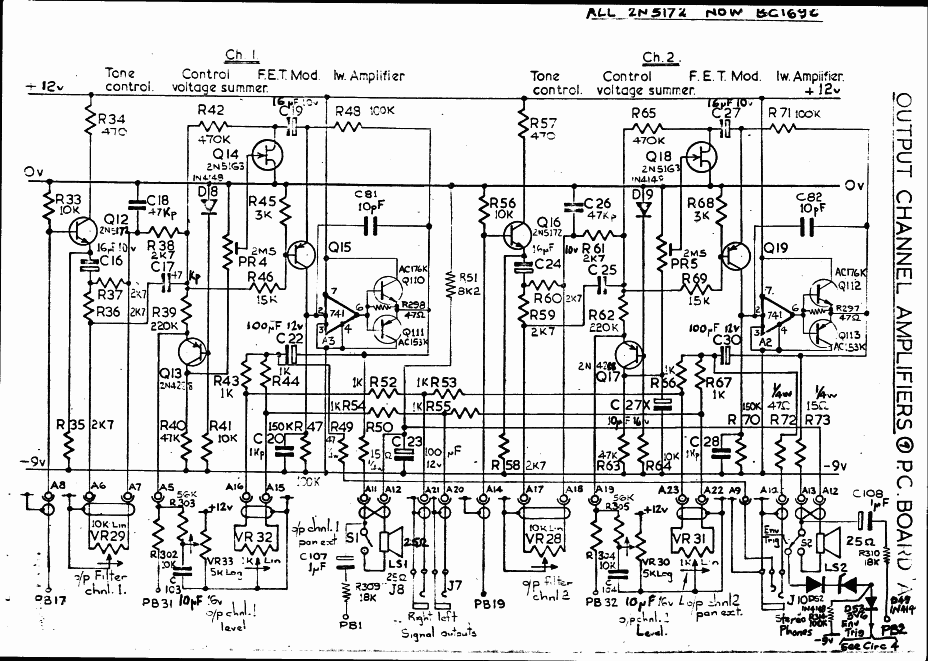

Output Channels

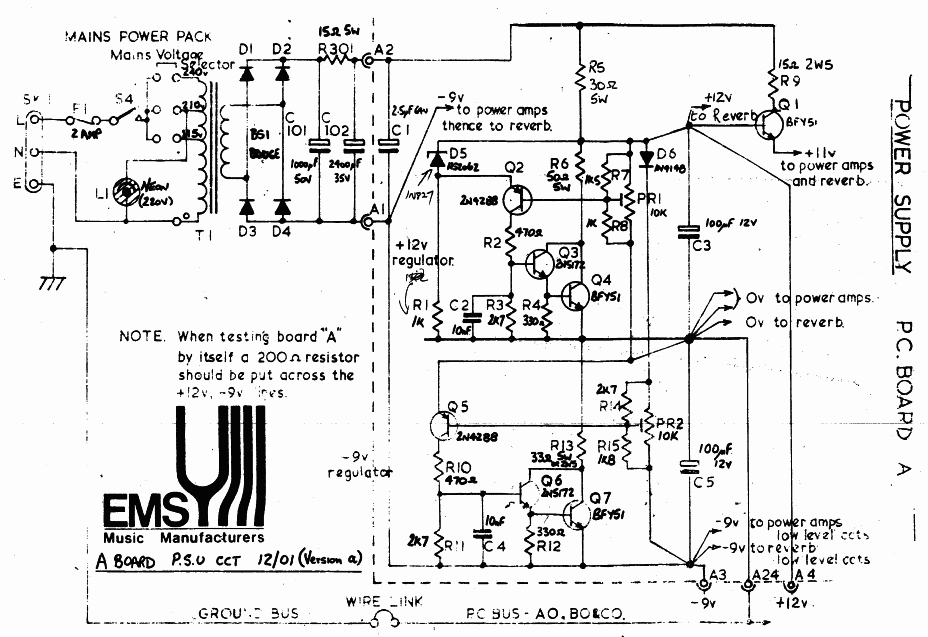

Power supply

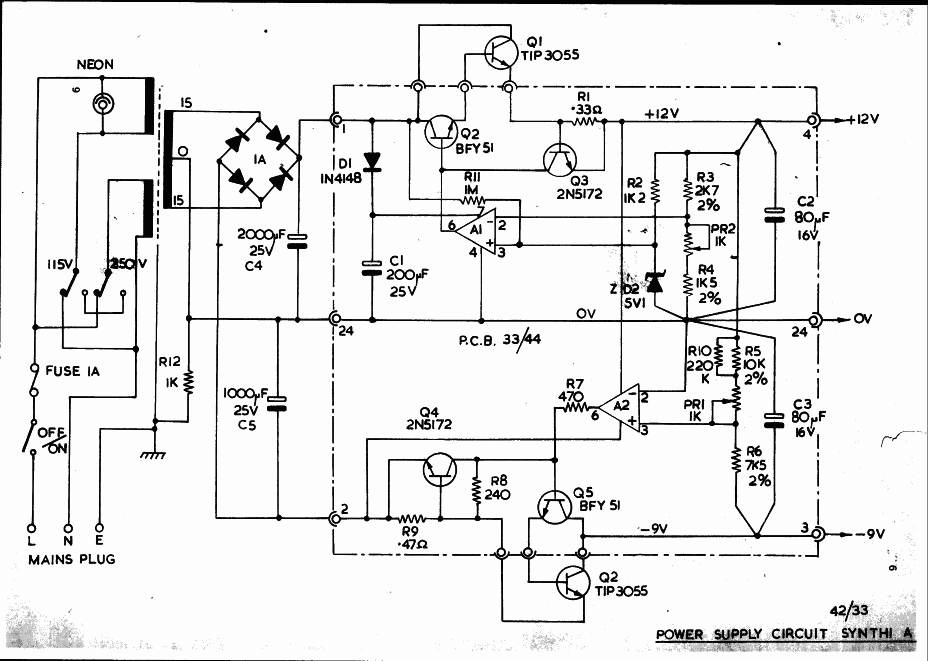

Power supply 2

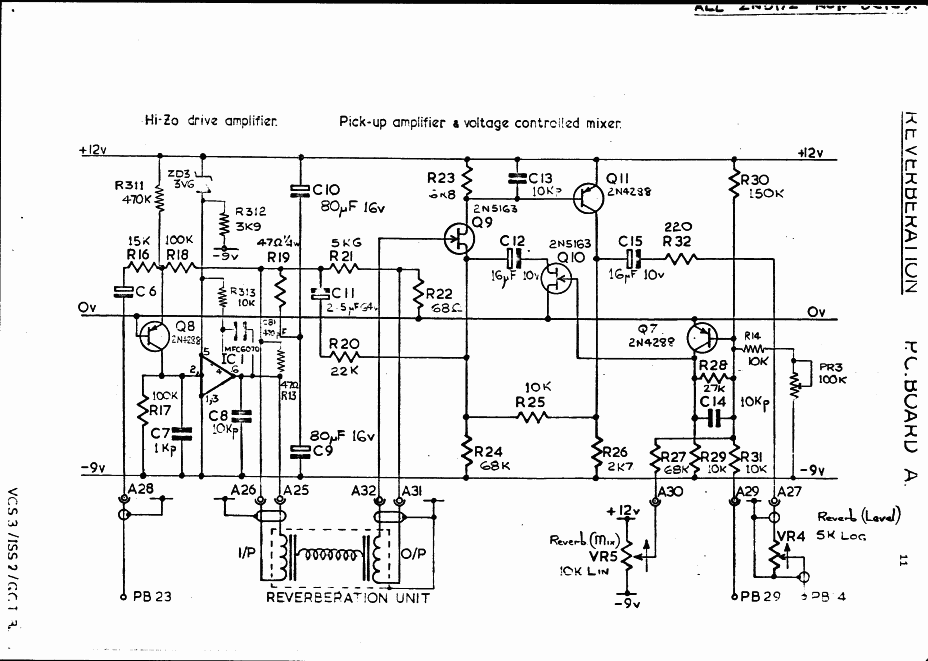

Reverb



Ring Modulator

---
